Casement Window Sample Approval: Why Hardware Strength Comes First

A Casement window sample should not receive final approval based on appearance alone. Before confirming the sample, inspect the hardware strength, fixing points, and connection between the hardware, sash, and frame. The review should also cover operating smoothness, locking locations, glazing clearance, mesh selection, sealing, drainage, and application-specific safety requirements.

What to Verify Before Sample Approval

• Operate the sash repeatedly to assess movement, alignment, closing action, and locking performance.
• Examine how the hardware is attached to the sash and frame, including the stability of screws, brackets, and other connection points.
• Confirm that the sample configuration is suitable for its intended use in bathrooms, kitchens, bedrooms, studies, balconies, bay windows, sunrooms, offices, hotels, or apartments.
• Match the physical sample with the proposed profile, glazing, mesh, sealing, and safety specifications.
• Request hardware load ratings and cycle-test information when these values are required by the project or specification.

Profile and Configuration Information

The Awing Window product data lists a 1.4 mm main thickness, a 55 mm by 43.5 mm outer frame, and a 55 mm by 69.5 mm sash. The system also provides a 30 mm glazing rebate and material data of 12.39 kg/m2. These dimensions should be checked against the sample, technical drawings, and purchase documentation before production approval.

Where insect screening is included, the available choices are diamond mesh and high-transparency mesh. The selected option should be reviewed together with the opening method, glazing arrangement, hardware clearance, and final appearance. This is particularly important in kitchens and bathrooms, where ventilation, moisture management, and safe operation may influence the completed assembly.

Why Hardware and Connections Matter

Hardware strength affects whether an operable window can continue to open, close, and lock correctly after installation. A weak or poorly connected component may cause sash drop, misalignment, difficult operation, or reduced security even when the profile finish looks acceptable. For this reason, the sample review should include practical operation and a close inspection of the mounting areas.

The available product information refers to distinctive operation and integrated safety safeguards, but it does not state specific hardware load capacities or cycle-test results. Those missing values should be requested and compared with the project's wind load, usage frequency, sash size, and safety requirements. Hardware approval should therefore be based on documented performance as well as visual inspection.

Quality Control and Project Experience

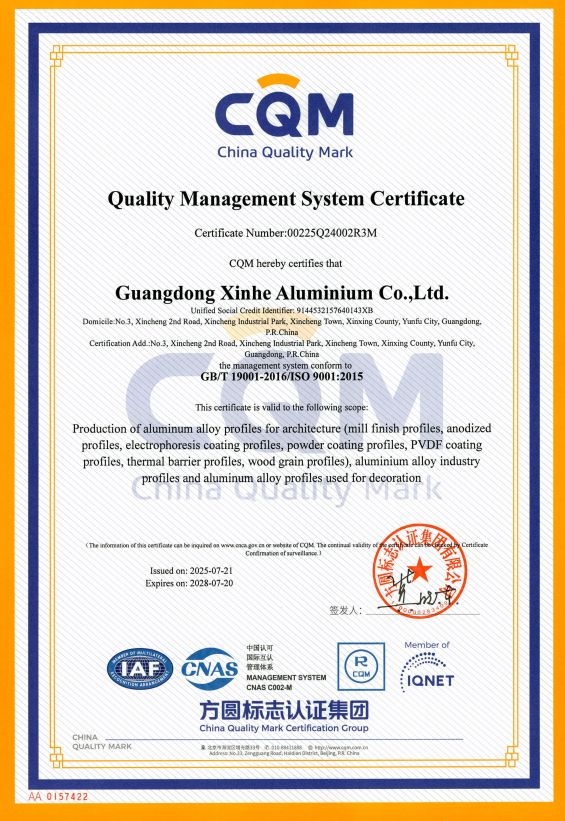

Xinhe Aluminium reports incoming raw-material inspection, 100% production-line inspection, and laboratory sampling and testing. Its documented credentials include a Quality Management System Certificate for GB/T 19001-2016/ISO 9001:2015 and a CNAS Laboratory Accreditation Certificate, number CNAS L 10434.

Project records cover building, hotel, residential, and office applications in several markets. One masked Southeast Asian building project described the use of multiple sealing strips and glue-injected corner brackets to support air and water tightness. Another Southeast Asian project used scientifically designed drainage holes to reduce water accumulation, backflow, and blockage. These examples show why a sample review should consider the complete system rather than hardware in isolation.

Sample Approval Checklist

Frequently Asked Questions

Is visual approval enough for a Casement window sample?

No. Visual inspection confirms the finish, colour, and general form, but it cannot verify hardware strength, operating stability, locking performance, mounting security, or safety functions.

Which details should be compared with the physical sample?

Check the 1.4 mm main thickness, outer-frame and sash dimensions, 30 mm glazing rebate, 12.39 kg/m2 material data, hardware arrangement, and selected mesh type against the technical documents.

Can the Awing Window be used in kitchens or bathrooms?

These environments are included among the listed application scenarios. Final approval should still confirm the opening mode, hardware operation, mesh, glazing, seals, drainage, and safety provisions for the specific installation.

Conclusion and Recommendation

Hardware strength should be assessed before approving a Casement window sample. Review the operating action and attachment points together with the profile dimensions, glazing rebate, mesh, seals, corner connections, drainage, and project-specific safety requirements. Xinhe Aluminium provides full industrial-chain, distribution, and direct-sales support for the Awing Window, with a stated minimum order quantity of 500 sqm and a delivery period of 15-20 days. Its quality documentation includes ISO 9001:2015 certification and CNAS laboratory accreditation. For technical support or a project-specific solution, contact us at xh@xinhealuminium.com.
