Eco-Friendly Anti-Corrosion Alternatives to Electroplating for Swivel Towel Racks

Why Modern Swivel Towel Rails Are Moving Away from Electroplating

Traditional electroplating processes for steel or brass bathroom fixtures present environmental challenges due to hazardous chemical waste. Moreover, electroplated surfaces tend to degrade, peel, or crack when subjected to continuous joint rotation, high moisture levels, and thermal cycling. To overcome these limitations, modern bathroom hardware engineering utilizes advanced surface treatments—such as Physical Vapor Deposition (PVD), baked lacquer/powder coating, and raw passivated 304 stainless steel—to ensure long-lasting durability without traditional plating baths.

Engineering Deep Dive: Three Non-Plating Protection Methods

1. Physical Vapor Deposition (PVD) Coating

PVD technology applies thin ceramic micro-layers onto a high-grade 304 stainless steel base inside a vacuum chamber. This vacuum-ion bonding creates an exceptionally hard outer layer that provides scratch resistance and withstands intense salt-spray exposure. It is ideal for demanding commercial applications like coastal resorts and luxury hotels. Engineering innovations, such as those detailed in the ODO-R2B Swivel Rotating Electric Heated Towel Rack Utility Model Patent (Certificate No. 15491732 / 16423119), highlight how rotating mechanisms can be combined with high-performance surface treatments.

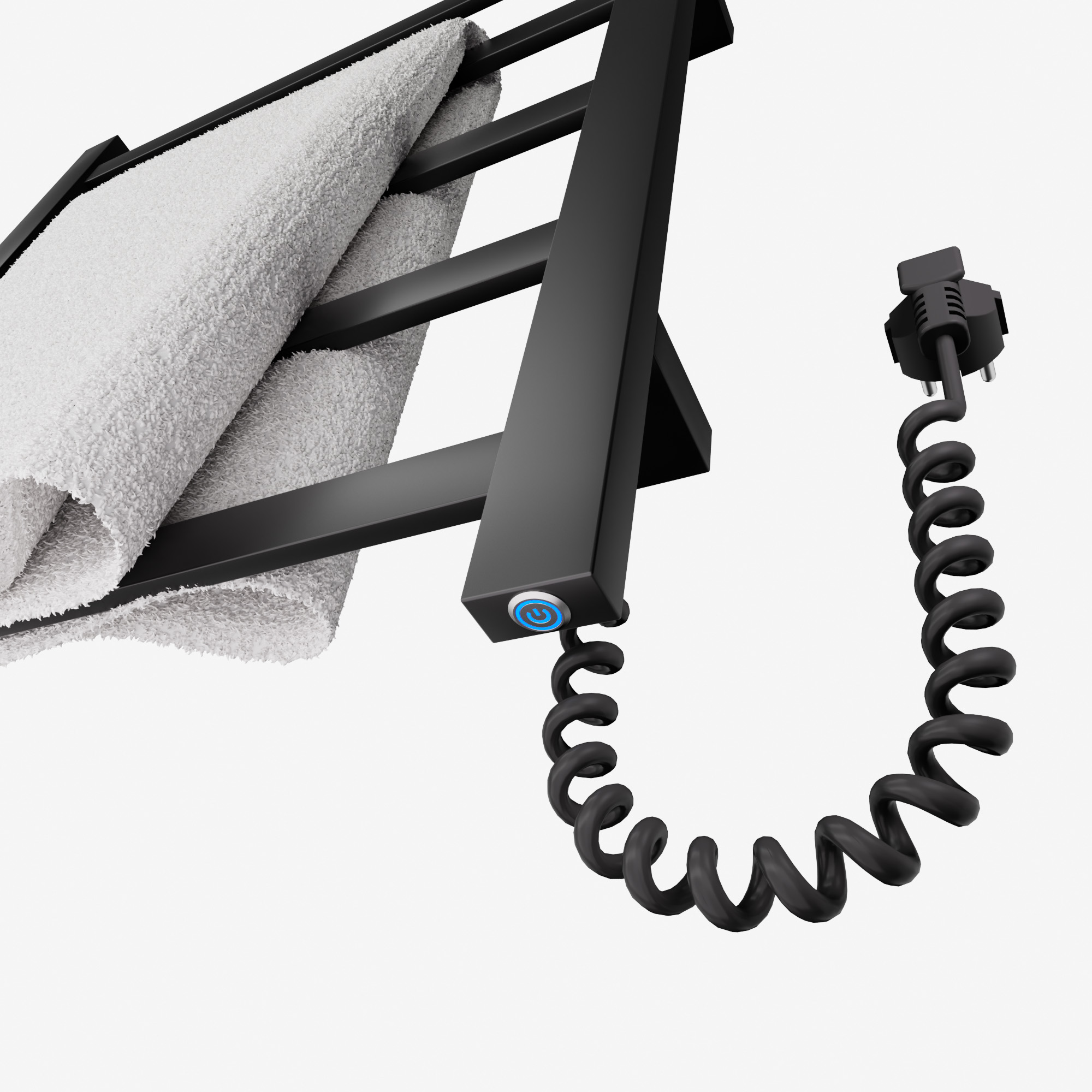

2. High-Temperature Baked Lacquer & Powder Coating

Electrostatic application of powder or liquid coatings followed by heat curing forms a continuous thermosetting polymer barrier. This fully encapsulates the metal substrate, delivering superior hydrophobic properties for humid bathrooms and spa environments. It also enables premium architectural finishes like matte black while remaining structurally stable under carbon fiber heating power up to 100W at 45°C–60°C.

3. Mechanical Passivated 304 Stainless Steel

By eliminating applied coatings altogether, direct brushed or polished raw 304 stainless steel leverages the alloy's natural composition (minimum 18% chromium). Upon atmospheric exposure, chromium naturally forms a self-healing passive chromium oxide ($Cr_2O_3$) film. This innate defense eliminates any risk of surface flaking or peeling caused by thermal expansion stress.

Performance Comparison Matrix

Compare the operational characteristics and environmental footprints of these electroplating alternatives:

Key Takeaways for Specification & Sourcing

• Eco-Friendly Manufacturing: PVD and mechanical passivation eliminate toxic chemical effluents associated with traditional chrome baths.
• Friction & Wear Resistance: PVD and passivated steel prevent flaking at high-use dynamic swivel joints.
• Thermal Compatibility: All three alternatives remain stable under 100W heating loads maintaining 45°C to 60°C operating temperatures.
• Proven Field Performance: Advanced treatments have successfully passed rigorous salt-spray trials for prestige international installations like the Dubai Palm Jumeirah 5-Star Hotel Project.

Frequently Asked Questions

Why is PVD coating superior to conventional chrome plating for rotating towel rails?

PVD forms an ultra-dense, atomic bond over 304 stainless steel that provides higher surface hardness and superior salt-spray protection without chipping at dynamic swivel rotation points.

Will baked lacquer degrade under continuous thermal heating?

No. Thermoset baked lacquer cures at high temperatures, allowing it to maintain color fastness and coating integrity across 45–60°C operational ranges without blistering or off-gassing.

How does brushed 304 stainless steel prevent oxidation without external plating?

The high chromium content in 304 stainless steel reacts with ambient oxygen to generate a microscopic, protective chromium oxide passive layer ($Cr_2O_3$) that continuously self-heals if scratched.

Conclusion & Commercial Guidance

Selecting the optimal anti-corrosion surface treatment depends on design aesthetics and functional priorities: PVD excels in luxury metallic colors with scratch resistance, baked lacquer delivers stylish matte tones, and passivated 304 stainless steel delivers ultimate long-term reliability against surface peeling. Products undergoing strict 14-step QC protocols and CE certification guarantee structural integrity alongside carbon fiber heating systems. OEM/ODM turnarounds include sample fulfillment within 3–7 days and bulk delivery in 20–45 days under a 2-Year Product Warranty. Contact charlene@seosodo.com for custom manufacturing inquiries.
