How to Choose Woodworking Equipment for Lower Waste and Energy Use

There is no verified evidence in the available data that a specific alternative to a single-surface thickness planer can reduce both material waste and energy consumption. Double-end saws, panel saws, and CNC router machines are available for different woodworking tasks, but their comparative waste and power data has not been supplied. The most suitable choice should therefore be based on the required operation, material characteristics, production layout, and confirmed machine performance.

Equipment Options and Main Findings

• The single-surface thickness planer is designed for workpieces up to 400 mm wide, thicknesses from 3 to 180 mm, and a maximum cutting depth of up to 4 mm.
• Double-end saws and panel saws are intended mainly for cutting, splitting, and sizing, whereas CNC router machines support routed shapes and customized machining.
• None of the supplied specifications establishes that these alternative machines consume less energy or generate less waste than the thickness planer.
• Sun Hunt provides individual woodworking machines, complete production lines, and non-standard customized solutions. The minimum order quantity is one set, with typical delivery in 20 to 35 days.

How the Machines Differ by Processing Function

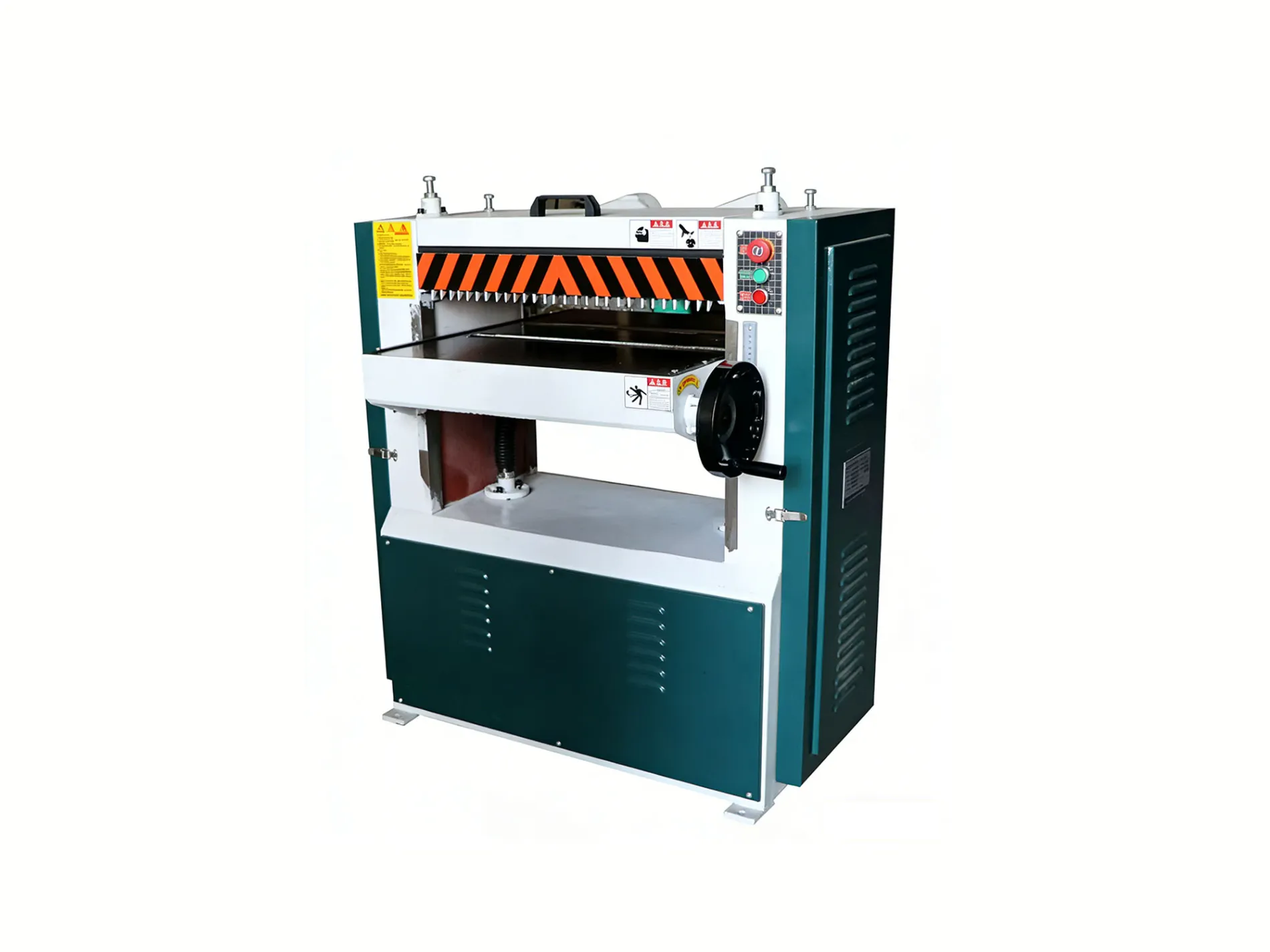

A single-surface thickness planer removes material from a workpiece to achieve a consistent thickness and a smoother surface. Its stated spindle speed is 5500 rpm, while the feeding speed is 6-8 m/min. The machine accepts planing widths of up to 400 mm, thicknesses between 3 and 180 mm, and workpieces with a minimum length of 250 mm. Its listed blade specification is 400 x 30 x 3 mm, installed power is 3 kW, and overall dimensions are 760 x 830 x 1240 mm.

Other machines should not be treated as direct replacements unless the production objective is different. Double-end saws are appropriate for coordinated sizing and cutting from two ends. Panel saws are suited to processing sheet materials and panel components. CNC router machines are better suited to computer-controlled routing, profiling, engraving, and customized shapes. The available information does not include comparable figures for saw kerf, yield, electricity consumption, or operating cost.

Material Yield and Process Planning

Waste levels are strongly affected by machine selection, cutting allowances, workpiece dimensions, and the sequence of operations. In solid-wood, raw-log, engineered-wood, and panel-furniture production, a typical workflow may include cross-cutting, multi-saw splitting, resawing, planing, veneer peeling, board gluing, pressing, and final sizing. Assigning each step to equipment designed for that function can help avoid unnecessary reprocessing, although no measured percentage reduction is provided in the source data.

Energy Evaluation Requirements

Energy comparisons must use machine-specific operating conditions rather than installed power alone. The thickness planer is listed with 3 kW installed power, but the supplied information does not state the power ratings or load profiles of the double-end saws, panel saws, or CNC router machines. A meaningful assessment should include actual operating-load measurements, throughput, duty cycle, material type, and production volume.

Comparison of Available Solutions

Quality Control and Production-Line Support

Sun Hunt states that its quality procedures include precision calibration, extended full-load testing, mechanical clearance checks, positioning verification, control-program inspection, noise and vibration review, and electrical stability testing. Its after-sales services include installation guidance, remote troubleshooting, spare-parts arrangements, maintenance advice, and technical assistance for machine modifications or control-system optimization.

The company also describes complete-line planning experience. One wooden-door factory in India received a 19-machine production line, while a wood-processing factory in the UAE received a 10-machine line. These examples indicate experience with integrated production planning, but the supplied information does not assign specific waste or energy savings to either project.

Frequently Asked Questions

Which machines can be considered alternatives to a single-surface thickness planer?

Double-end saws, panel saws, and CNC router machines are listed product categories, but they serve different purposes. They are alternatives only when the required process changes from thickness planing to sizing, panel cutting, routing, or other customized machining.

Which machine uses the least energy?

The available data does not identify a lowest-energy option. The thickness planer has a stated installed power of 3 kW, while equivalent operating and load information for the other machines has not been provided.

What should buyers request when comparing material waste?

Ask for process-specific yield figures, cutting and planing allowances, actual power measurements, throughput data, and sample-trial results using the intended material. Without these details, no reliable waste-reduction ranking can be made.

Conclusion and Practical Recommendation

No machine in the supplied information is proven to reduce both material waste and energy consumption compared with the single-surface thickness planer. Use the planer when its 3-180 mm thickness range and maximum 400 mm working width meet the application. Consider double-end saws for sizing, panel saws for sheet and panel cutting, and CNC router machines for routed or customized work. Buyers seeking coordinated equipment can also request a complete production line or a non-standard solution from Sun Hunt. One set is accepted as the minimum order quantity. For technical consultation and support, please contact us at vincent@fsshmachine.cn.
