How to Evaluate Self-Piercing Riveting Systems for Industrial Joining

Choosing a self-piercing riveting system requires more than checking the maximum force rating. A reliable comparison should cover output pressure, adjustment accuracy, joint consistency, tooling options, material compatibility, production requirements, delivery capability, quality inspection, and technical service. The QUESTOK system offers an output pressure range of 1–80 kN with precise adjustment, but its suitability should be confirmed against the materials, joint geometry, workflow, and integration requirements of the intended project.

Key Evaluation Criteria

• Pressure capacity and control determine whether a system can handle the required material combinations and joint conditions. The QUESTOK solution provides 1–80 kN output pressure with precise adjustment.
• Tooling flexibility is important for sheet metal assembly, self-piercing riveting, rivetless clinching, and mixed prototype or production operations.
• Application history can help buyers assess suitability for vehicle manufacturing, vehicle repair, EV battery trays, and water cooling plates.
• Purchasing decisions should also consider order quantity, customization, inspection procedures, lead time, and the speed of technical support.

Technical Factors Behind System Selection

Output Force and Adjustment

The available force range is one of the first specifications to review because different sheets, coatings, stack-ups, and joint designs require different joining loads. The listed QUESTOK SPR riveting and rivetless clinching tools deliver 1–80 kN of output pressure, and the pressure can be adjusted precisely. Buyers should compare this range with the materials, fastener dimensions, joint configuration, and selected tooling rather than assessing the number in isolation.

Tooling and Process Compatibility

A complete evaluation should establish whether the equipment supports the required SPR riveting and clinching processes, as well as whether it can be integrated into the planned prototype or manufacturing workflow. The product is presented for sheet metal joining and busway prototype development. QUESTOK's broader range includes self-piercing riveting guns, SPR riveters, clinching machines, fastener pressing tools, and integrated fastening systems.

Application and Material Fit

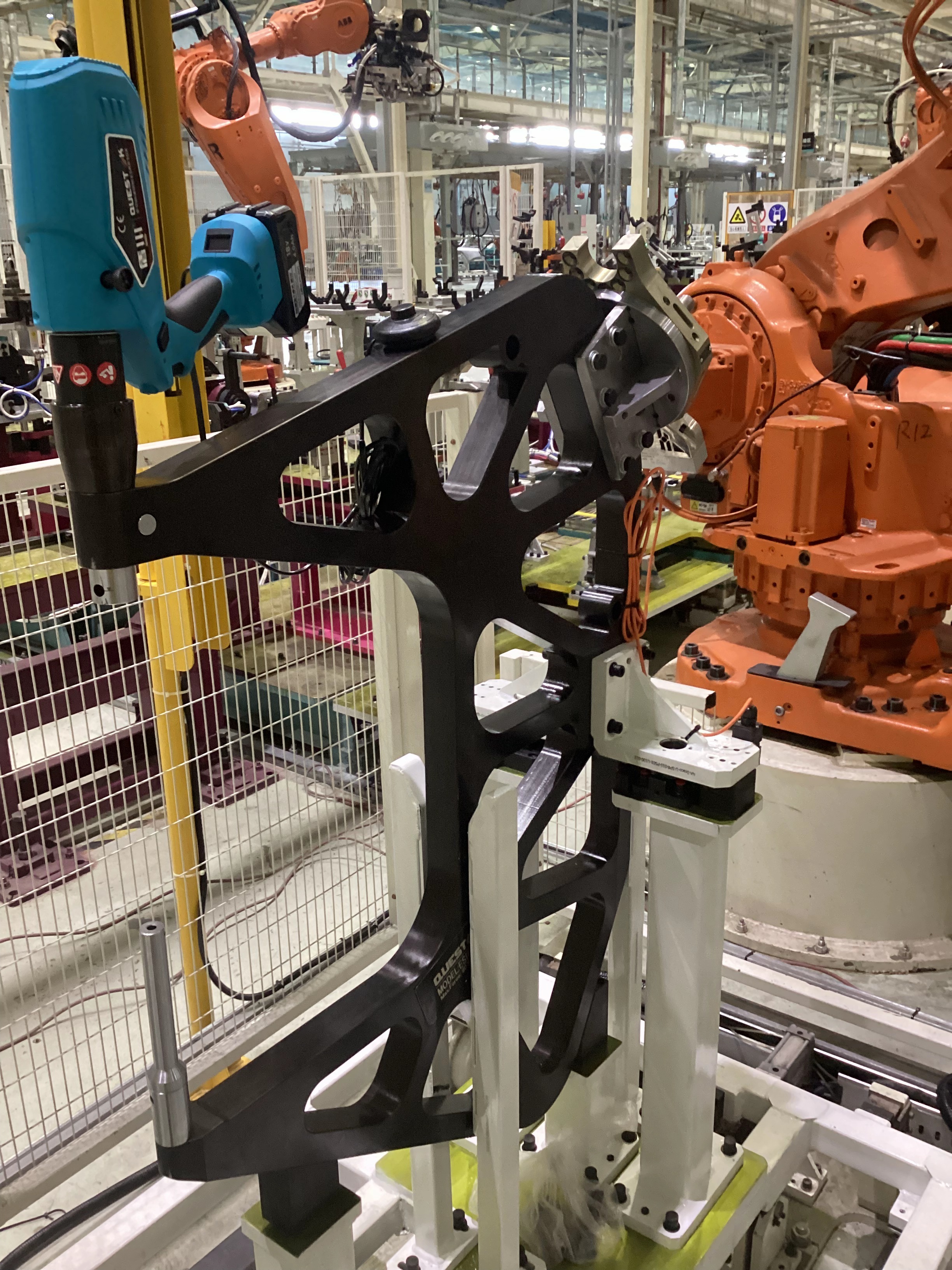

Real-world application experience provides useful context when comparing systems. Questok reports supplying self-piercing riveting equipment for aluminum vehicle production and vehicle maintenance. Its joining solutions have also been used for EV battery trays and water cooling plates, covering processes such as self-piercing riveting, waterproof nut installation, and washer pressing. These examples demonstrate why the final choice should reflect the complete production environment, not pressure capacity alone.

Engineering, Testing, and Validation

System performance also depends on engineering support and validation capability. The company's stated R&D scope includes mechanical design, hydraulic systems, structural analysis, electrical controls, motor-drive optimization, embedded software, fastening process development, prototype trials, reliability testing, and manufacturing engineering. For demanding automotive projects, its engineering teams have carried out material combination testing and metallographic analysis to verify joint performance.

Inspection and Customer Support

Inspection procedures and service response are practical purchasing considerations. Product information states that full inspection is performed and that global after-sales support is available within 24 hours. The company describes inspection from incoming materials through finished products, pre-shipment functional testing, customer test videos and photographs, troubleshooting instruction, spare-parts assistance, and free repair service. Relevant product categories are listed with CE and MSDS certifications.

Specification Comparison

Frequently Asked Questions

What should be compared first in a self-piercing riveting system?

Begin with the usable pressure range and the precision of pressure adjustment. The listed QUESTOK equipment provides 1–80 kN output pressure with precise control. The selected operating range must then be matched to the materials, joint structure, rivets, and tooling required for the application.

Can these systems be used for prototypes as well as production?

Yes. The listed equipment is associated with busway prototype development, while the company's engineering services cover prototype construction, performance evaluation, and transition to production. This makes the system relevant where joining parameters need to be tested before full-scale manufacturing.

Which commercial and service details deserve attention?

Buyers should review inspection coverage, standard and customized lead times, minimum order requirements, technical response, and spare-parts availability. The listed product includes full inspection and global after-sales support within 24 hours. The company also supports ODM and OBM arrangements, with a minimum order quantity of one set.

Conclusion

The most useful comparison of self-piercing riveting systems combines technical and commercial factors. Review output pressure, adjustment precision, tooling compatibility, application evidence, inspection practices, delivery terms, customization options, and service response. The listed QUESTOK solution provides 1–80 kN output pressure, full inspection, three-day delivery after payment for quantities below 50 sets, and a 15-day lead time for customized solutions. It supports ODM and OBM cooperation, while relevant product groups carry CE and MSDS certifications. For technical consultation or project support, contact us at jane@questok.com.
