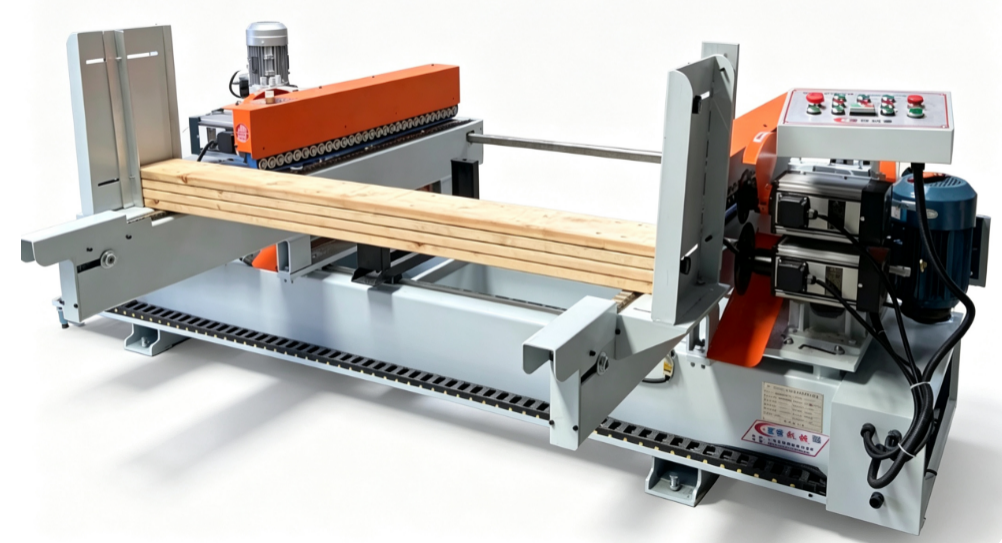

How to Select a Circulating Automatic Double-End Tenoner and Cut-Off Machine

Selecting the right circulating automatic double-end tenoner and cut-off machine requires a comparison between your production requirements and the equipment's working range, material capacity, spindle specifications, feeding system, footprint, and customization options. This model processes workpieces from 200 to 2,000 mm long, accepts wood with a minimum thickness of 10 mm, and includes variable-frequency feeding with optional CNC length positioning.

Key Selection Points

• Make sure the required workpiece length is within the machine's 200 mm to 2,000 mm processing range.
• Verify that all intended wood materials meet the minimum 10 mm thickness requirement and identify any special material conditions.
• Review the feeding and positioning functions, including variable-frequency speed control, electric table movement, and optional CNC length positioning.
• Assess whether the equipment suits your application, such as wooden door manufacturing or general wood-processing production lines.
• Confirm that the workshop can accommodate the machine, its material flow, electrical supply, and handling requirements.

Machine Structure and Operating Performance

This equipment combines double-end tenoning with cut-off operations inside a specified processing envelope. Its usable workpiece length ranges from 200 mm to 2,000 mm, while the minimum processable wood thickness is 10 mm. These limits should be checked against the dimensions of the products planned for the production line before an order is placed.

The machine is equipped with a 25.4 mm spindle running at 6,000 r/min. Its total installed power is 13 kW, and the approximate weight is 2,000 kg. With overall dimensions of 3,300 × 1,600 × 1,200 mm, the installation plan should include workshop clearance, operator access, loading routes, and the movement of raw materials and finished parts.

Feeding and Positioning Options

Variable-frequency speed regulation allows the feeding rate to be adjusted for different materials and production conditions. Electric table movement provides powered adjustment during operation, helping simplify routine setup and processing. For lines that require more flexible or automated length control, CNC length positioning can be supplied as an optional feature and configured around the customer's material requirements.

When comparing machines, buyers should consider more than the figures on a specification sheet. Sun Hunt reports that finished equipment receives full precision calibration and extended load testing before shipment. Mechanical clearances, positioning accuracy, control programs, surface condition, and concealed performance issues are reviewed and optimized during the inspection process.

Applications, Service, and Delivery Planning

The equipment has documented use in wood-processing production environments. A wooden-door factory in India reportedly purchased 19 machines for a new production line, while a wood-processing factory in the UAE purchased 10 machines as part of its line planning. Reported feedback highlighted stable operation, improved productivity, responsive after-sales assistance, and better production organization.

After-sales support includes video or voice communication, installation tutorials, and ongoing technical assistance. Once a fault has been verified and the required component has been identified through online video communication, international express delivery of spare parts can be arranged within two working days. The warranty lasts one year, excluding consumables and failures caused by improper operation. Local engineer service may also be available in selected regions, together with equipment upgrades and maintenance recommendations.

Technical Comparison for Buyers

Frequently Asked Questions

What workpiece dimensions can the machine handle?

The stated length range is 200 mm to 2,000 mm. The material must also meet the minimum wood thickness of 10 mm.

Can the equipment be configured for special materials?

Yes. The product can be customized according to customer material requirements. CNC length positioning is also available as an optional configuration when a production line requires automated or more precise length control.

What support is provided after installation?

Available assistance includes online video and voice support, installation guidance, continuing technical service, spare-parts delivery after fault confirmation, possible regional engineer service, modification and upgrade solutions, and routine maintenance recommendations.

Conclusion

This circulating automatic double-end tenoner and cut-off machine is a suitable option when your workpieces measure between 200 and 2,000 mm in length, meet the 10 mm minimum thickness, and require adjustable feeding or optional CNC length positioning. Sun Hunt accepts orders starting from one set and can provide non-standard configurations and complete production-line solutions. Standard business-model delivery is generally 20–35 days, while this product lists a 30-day delivery period. For technical consultation or service support, contact vincent@fsshmachine.cn.
