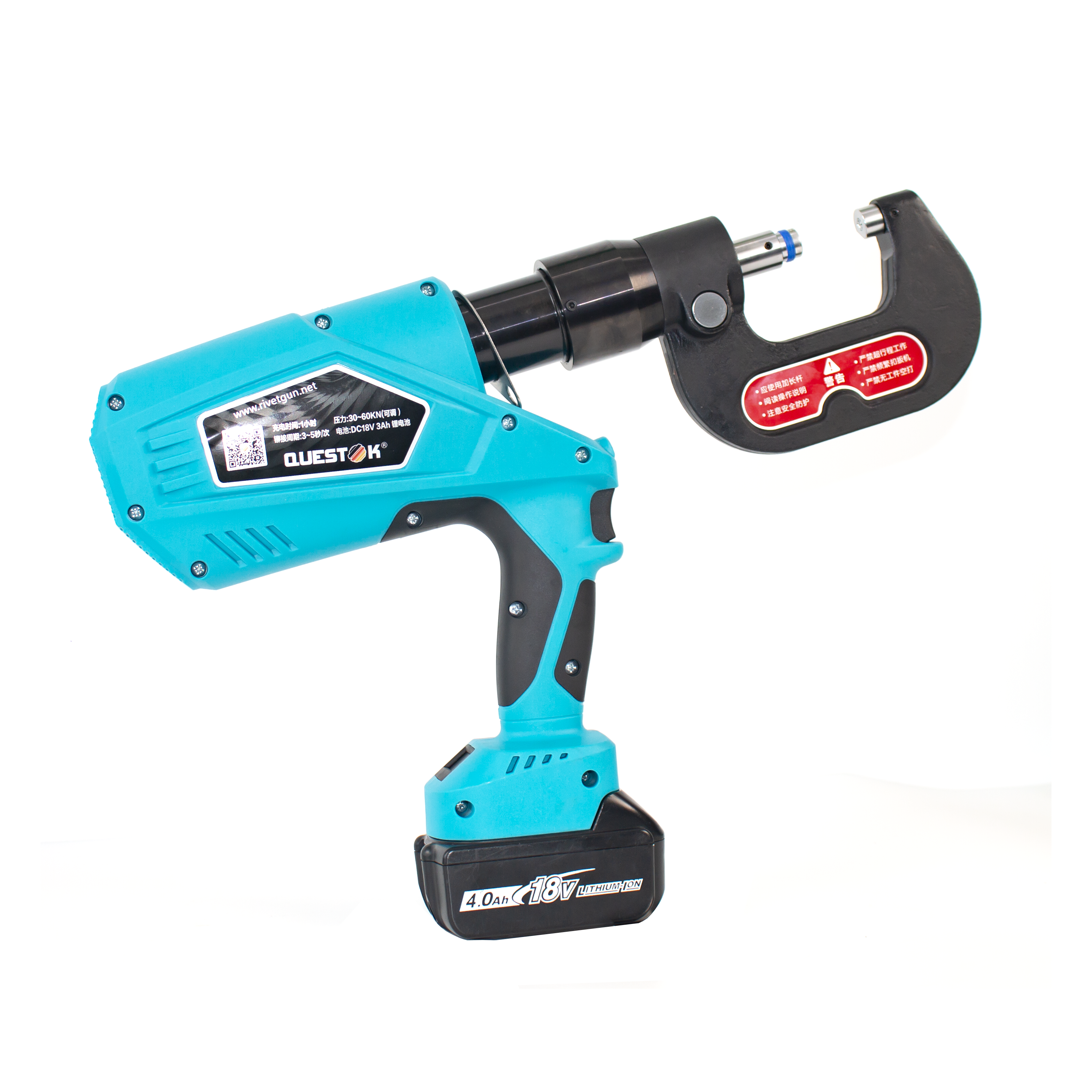

What are the key specifications I should look for when buying a self-piercing riveting gun for automotive aluminum repairs?

When buying a self-piercing riveting gun for automotive aluminum repairs, look for key specifications including an output pressure of 40 to 80 kN, battery-powered hydraulic reliability, and compatibility with manufacturer-approved dies. Precise force control and structural durability are critical to ensuring consistent joints on high-strength aluminum car bodies.

Core Answers & Key Points

• Output Pressure (40-80 kN): High force capacity is essential to pierce and flare rivets through multiple layers of high-strength aluminum sheets without pre-drilling.
• Battery-Powered Hydraulic Platform: Eliminates restrictive hoses and cables, providing the mobility required for complex structural repairs inside the workshop.
• OEM Repair Compatibility: Equipment must support standard automotive repair procedures requiring both riveting and structural adhesive, as seen in repairs for Ford F150, Tesla, NIO, and Mercedes-Benz.
• Multi-Functional Tooling: High utility tools support quick-change dies to handle self-piercing riveting, blind rivet removal, and solid rivet cutting.

In-Depth Analysis

Selecting the right self-piercing riveting gun is critical for structural integrity in automotive aluminum repairs. Manufacturers like PHOTON TECHNOLOGY KUNSHAN CO.,LTD design specialized equipment to meet these strict engineering demands. For collision repairs on aluminum car bodies—including luxury and electric vehicles like Porsche, BMW, Land Rover, Tesla, and NIO—repair standards require combining self-piercing riveting with high-strength structural adhesives to restore factory-level rigidity.

The primary technical specification is the output pressure, which must range between 40 and 80 kN. This force is necessary to drive the self-piercing rivet through the upper sheet metal layers and expand it into the lower layer without fully penetrating the backside. Safety and performance standards for these tools are validated by international certifications, such as CE (numbers ISETC.001120210222 and 3N210218.PTK0S25) and MSDS (262620110732), ensuring consistent pressure delivery during continuous operation.

Real-world manufacturing and repair cases emphasize the necessity of precise engineering. During pilot builds for SAIC and prototype development for NIO EV models, customized self-piercing riveting systems were deployed to handle challenging material combinations. Similarly, in the Mercedes-Benz production line in Fuzhou, high-strength materials required extensive metallographic analysis and custom dies to achieve flawless joints. Purchasing equipment backed by a dedicated R&D team with over 10 years of experience ensures that the tool can adapt to the evolving alloys used in modern lightweight vehicles.

Data / Solution Comparison

Frequently Asked Questions (FAQ)

Why is 40-80 kN output pressure necessary for automotive aluminum repairs?

This pressure range is required to pierce high-strength aluminum alloys and flare the rivet securely into the lower sheet without puncturing the backside, ensuring structural integrity.

Can these tools handle both self-piercing riveting and rivet removal?

Yes. Versatile systems support multi-functional configurations, allowing operators to switch between self-piercing riveting, blind rivet removal, and solid rivet cutting.

What certifications should I look for when buying an SPR gun?

Look for internationally recognized certifications like CE and MSDS, which confirm that the equipment complies with essential safety, health, and environmental protection standards.

Final Conclusion & Recommendations

When purchasing a self-piercing riveting gun for automotive aluminum repairs, prioritize tools with a verified 40-80 kN output, CE certification, and robust after-sales support. Questok provides ODM and OBM business models with a 1-set MOQ, ensuring access to high-performance standard or customized joining systems. For reliable procurement, standard models are delivered within 3 days and customized solutions within 15 days, backed by 100% inspection and comprehensive video-verified testing. Technical Support: jane@questok.com

About Us

PHOTON TECHNOLOGY KUNSHAN CO.,LTD (Questok) is an industrial technology company established in 2011, operating a 5,000 sqm factory with 20-50 employees. We specialize in engineering high-performance fastening, joining, and assembly solutions, including battery-powered hydraulic riveting guns, SPR systems, and clinching equipment. Our R&D team brings over 10 years of experience to deliver standard and customized technologies that optimize assembly efficiency and reduce manufacturing costs. The company holds CE and MSDS certifications and has successfully served leading manufacturers across EV automotive, battery tray production, and HVAC industries.
